NA-C50
Introducing NA-C50
Canon C50 Camera
The Canon EOS C50 Cinema Camera, featuring a newly developed 7K full-frame CMOS sensor, is a powerful compact cinema camera for video and photo needs. It can record 3:2 Open Gate video at 4K120fps and raw video up to 7K60fps. It also captures 32MP stills in photo mode. Users can easily switch between photo and video modes. Advanced features include Dual-Pixel CMOS AF II, simultaneous 2K crop recording, Frame.io Camera-to-Cloud integration, and XC protocol support for remote control.
Key Features
- 7K FF Back-Illuminated CMOS Sensor
- 7K 3:2 Open Gate, UHD 4K120, 2K180
- Dual-Base ISO: 800 and 6400
- Full-Size HDMI Output, DIN Timecode Port
- Dual-Pixel CMOS AF II
- Top Handle with XLR Audio Inputs
- Adjustable-Speed Zoom Rocker
- Simultaneous Crop Recording
- Frame.io Camera-to-Cloud Integration
- CFexpress Type-B and SD Card Slots

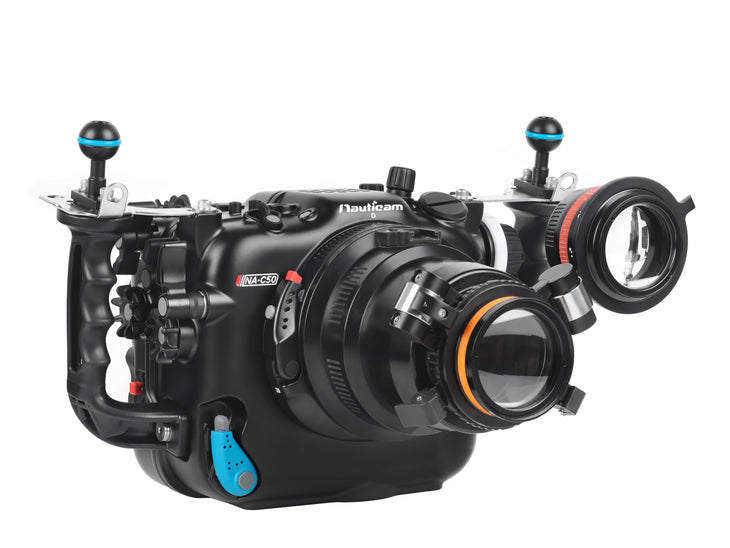

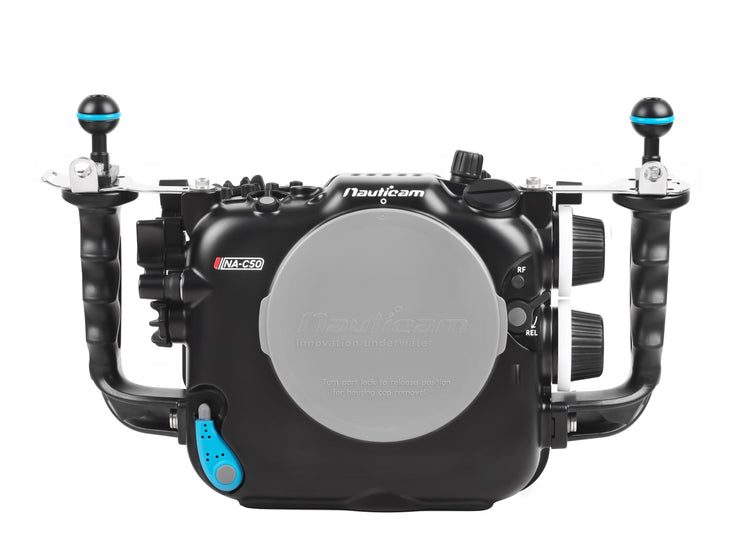

NA-C50 Housing

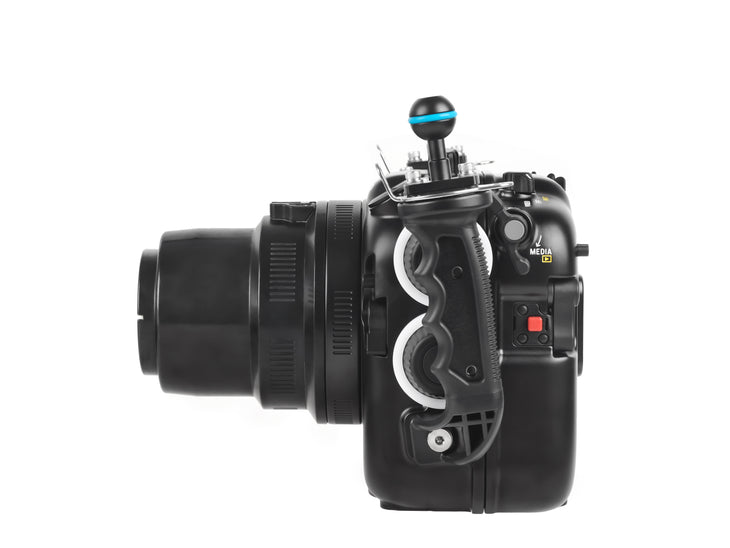

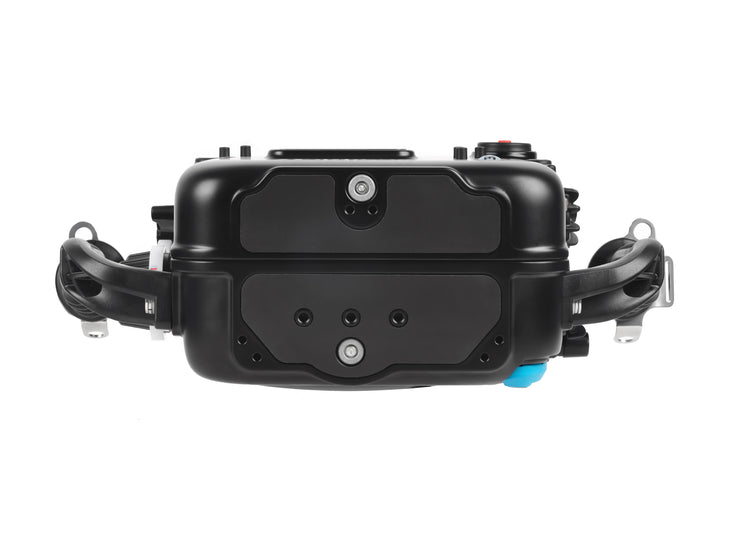

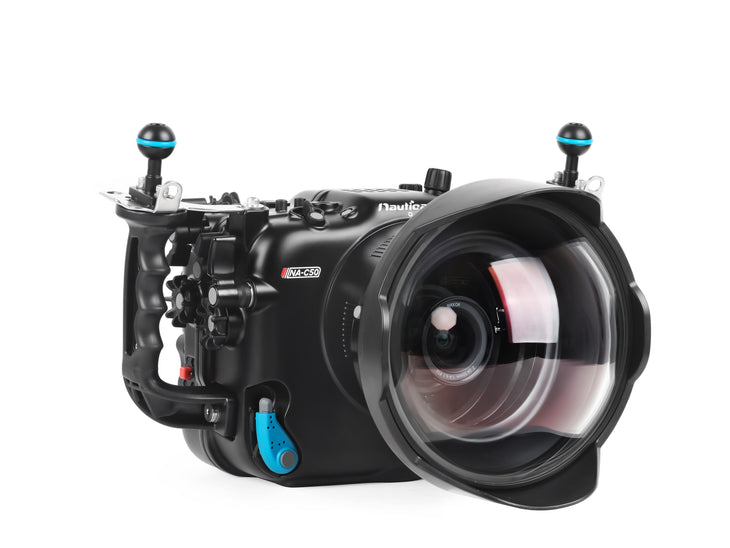

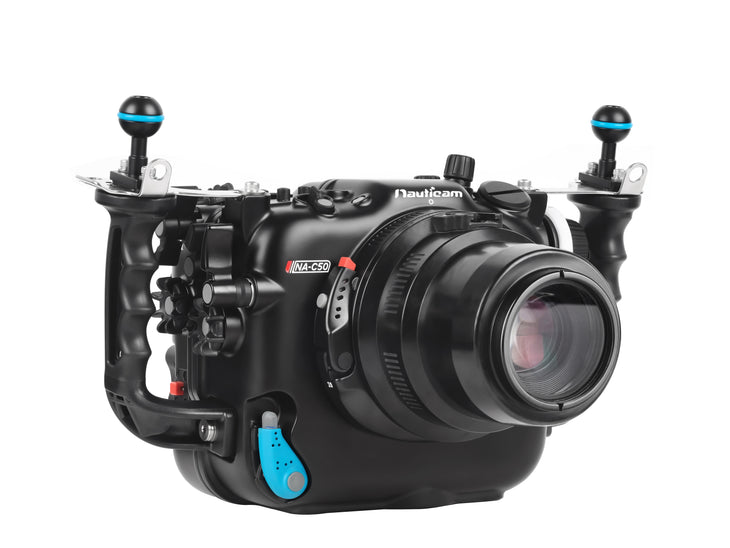

The NA-Cbo underwater housing upholds Nauticam’s dedication to innovation. Essential controls are conveniently accessible via ergonomic handles, facilitating an efficient setup that optimizes time spent in the water and minimizes time spent on rig maintenance. The N120 port system accommodates Canon RF and EFMount lens. For EF lens the RF to EF adapter with a variable ND filter can be used with an optional control kit. Nauticam’s extensive range of ports and in-house corrective optics complement the NA-C50’s capabilities. When equipped with an accessory vacuum valve, the integrated vacuum check and leak detection system provides continuous updates on the housing’s watertight integrity. A vacuum system reset switch, located beneath the tray, eliminates the necessity to open the back of the housing during lens or port changes. The NA-C50 supports additional mounting with a built in 1/4-20 cheese plate.
USB Power Bank Support
The Nauticam NA-C50 features space inside the housing on the bottom for a USB power bank.
Recommended Power bank:
Amazon.com: Anker Power Bank, 20,000mAh Travel Essential Portable Charger with Built-in USB-C Cable, 3-Port 87W Max Fast Charging Battery Pack, for MacBook, iPhone 16/15 Series, Samsung, Switch, and More : Cell Phones & Accessories
The maximum size of Power Bank: 165mm (W) x 76mm (D) x 26mm (H )
PREMIUM PROFESSIONAL OPTICS

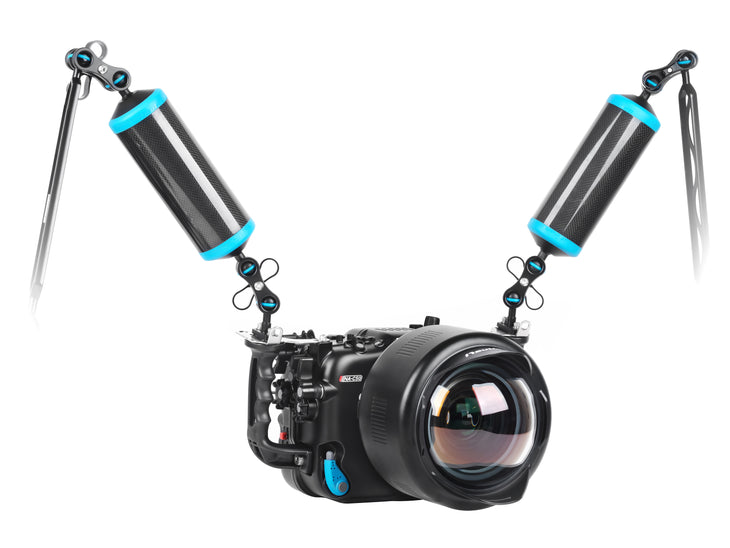

Nauticam’s professional water-contact optics deliver the highest underwater image quality. The FCP, WACP, and WWL lines enhance wide-angle, while the MFO and SMC offer exceptional macro and super macro capabilities. The EMWL allows you to shoot macro, wide-angle, or combine the styles for unique images.
Mission Control

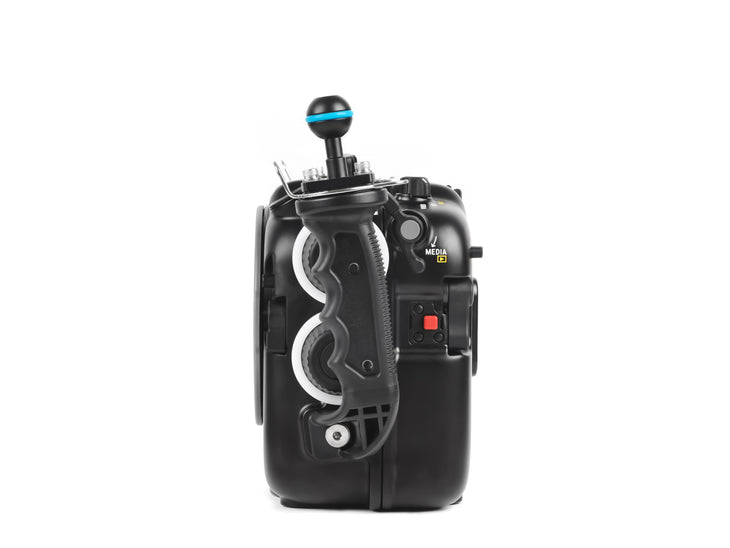

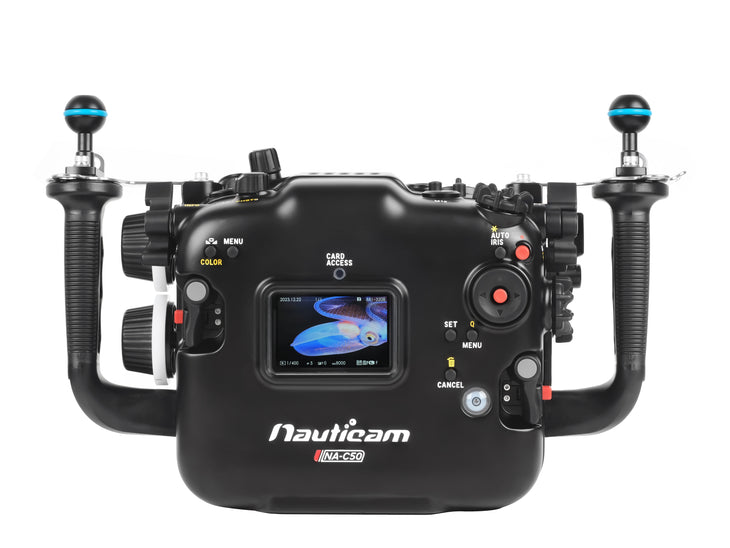

In true Nauticam fashion, essential controls are placed as close to the handles as possible, making these housings the most intuitive and user-friendly available. Our engineers strategically position controls where they’re needed most, rather than simply near the corresponding buttons on the camera. Dials feature rubberized finger grooves, and levers are designed for smooth operation.
Integrated Vacuum Check & Leak Detection Electronics
The Nauticam vacuum check and leak detection system is shipped with NA-C50 as standard equipment. Combined with an accessory vacuum valve (PN 25625), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.
Resources
Resources
User Manual PDF Download
What's in the box:
- NA-C50 Housing
- 90222 Housing O-ring, lubricant, O-ring remover
- 2x Handles with mounting balls
- CR2032 Battery (for moisture alarm and vacuum system)
- Allen Wrench Set
- USB-C to USB-C Right Angled Cable for Power Delivery.
- Housing carry bag and shoulder strap

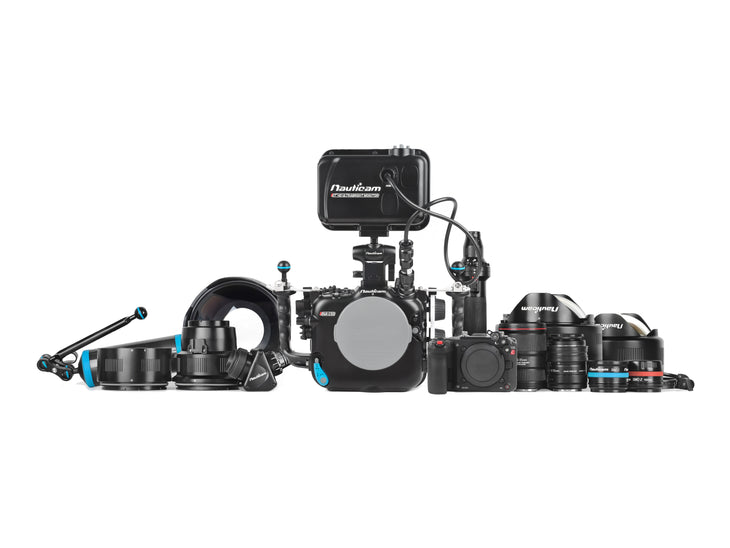

Recommended Accessories
- 16701 Top Handle for E2/F/C70/BGH1/BMPCC/R5C
- 17959 Housing Mounting Ball with 1/4'' Screws
- 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
- 25221 M10 strobe mounting ball for housing
- 25224 M10 strobe mounting ball for housing (with hole for using lanyard)
- 25228 M5 strobe mounting ball for housing
- 25625 M16 Vacuum Valve II (Pushbutton Release)
- 25413 27cm lanyard with 2 snap hooks
- xxxxx LCD window shade for NA-ZR
Surface USB-PD Power Bank
26325 USB-C Bulkhead with USB-C Connector

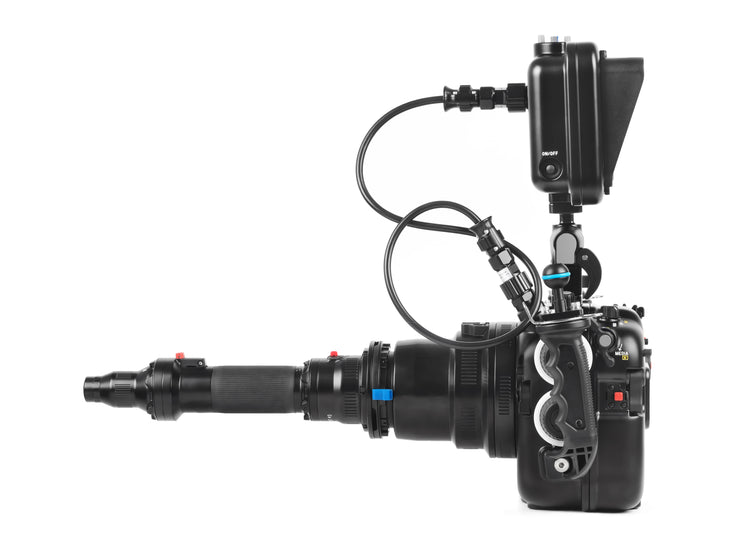

HDMI Output
Required accessories for HDMI 2.0 Cable System
- 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
- 25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-α1/GH6/A9III to use with Ninja V housing) (TBD)

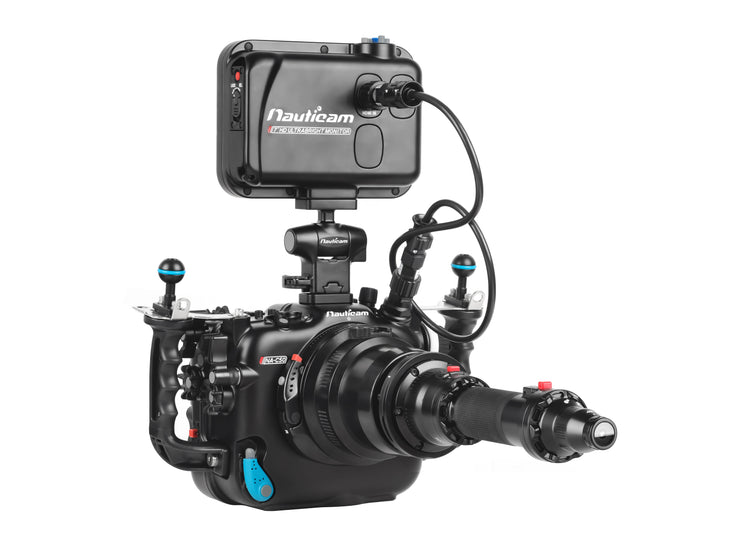

Monitor housing Options:
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
- 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module
Required accessories for HDMI 1.4 Cable System
- 25033 Standard HDMI bulkhead with M16 thread
- 26326 M24-M16 Adaptor for use with 26325 *instead of existing 25081
- 25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1/FX3/GH6 (for connection from HDMI bulkhead to camera) (TBD)
Monitor housing Options:
- 16611 Nauticam 7'' G7 UW ULTRAHD Monitor (4K HDMI, 2K SDI input, excl. cables)
- 16612 Nauticam 7'' T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
-
25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads) *25047 is Required for use with 16611 and 16612 monitor housing
- 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input *17927 includes 25033,25038,25100
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja 5 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
- 25082 HDMI 1.4 Cable for Ninja V housing in 0.75m Length (for connection from Ninja V housing to HDMI bulkhead)
*25082 is Required for use with 17922 monitor.
Monitor / Tripod Mounting System
-
17951 Nauticam Atomos Shogun housing mounting system
- 17954 Tripod plate for NA-A7S and NA-GH4
- 17957 Nauticam Monitor Housing Mounting Adaptor (TBD)
- 17960 Universal Quadra-Pod Plate for Nauticam Housings
- 17961 Swivel and Tilt Adjustable Monitor Mount System (compatible with 16612/17927/17922 etc.)
- 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)

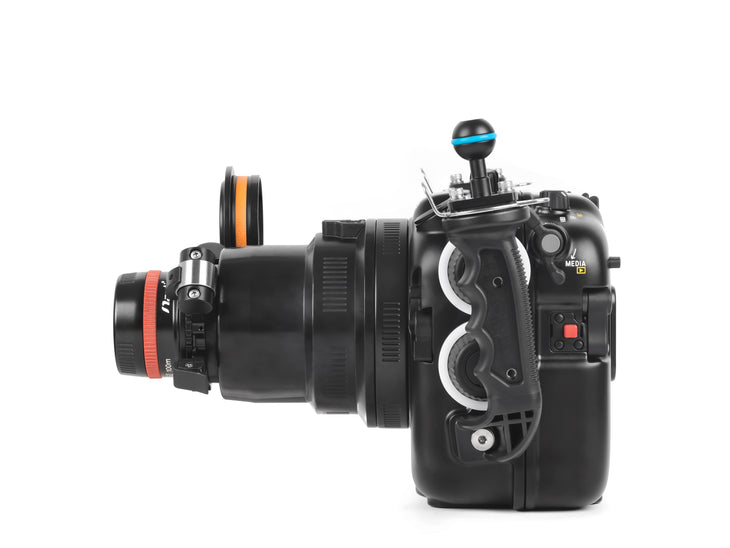

Wet Lenses
Macro
- 81202 Super Macro Convertor 2 (4x Magnification)
- 81203 Super Macro Convertor 3 (2.3x Magnification)
- 81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
- 81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
- 81501 Mid-range Focus Optimizer 1
- 81503 Mid-range Focus Optimizer 3
Wide-angle
- 83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses (incl. float collar)
- 83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses (incl. float collar)
- 85204 Wide Angle Conversion Port - 2 (WACP-2) 140 Deg. FOV with Compatible 14mm Lenes (incl. float collar)
- 85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
- 85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and Interchangeable Port Mounting Ring - (WACP-1B)
- 85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg. FOV with Compatible 28mm Lenses
Macro to wide-angle
- 87303 EMWL Set #3 (incl. focusing unit #2, 150mm relay lens and 3 objective lenses)
- 87203 EMWL Focusing Unit #3 (for Canon FF 100mm & APS-C 60mm)
- 87211 EMWL 150mm Relay Lens
- 87212 EMWL Angled Relay Lens
- 87221 EMWL 60° Objective Lens
- 87222 EMWL 100° Objective Lens
- 87223 EMWL 130° Objective Lens
- 87226 EMWL 160° Objective Lens
Wet Lens Accessories
- 25101 M67 flip diopter holder for M67 macro ports
- 25108 M67 Double Flip Holder for M67 Macro Ports
- 83250 M67 to Bayonet Converter II
- 83214 Bayonet Mount Adaptor for SMC/CMC
- 87501 Flip Holder for EMWL
- 87512 Shade for 130° Objective Lens
-
87513 Shade for 100° Objective Lens
- 87519 Shade for 160° Objective Lens
- 87518 Strobe Mounting Brackets for EMWL Relay Lens
