NA-Z6III

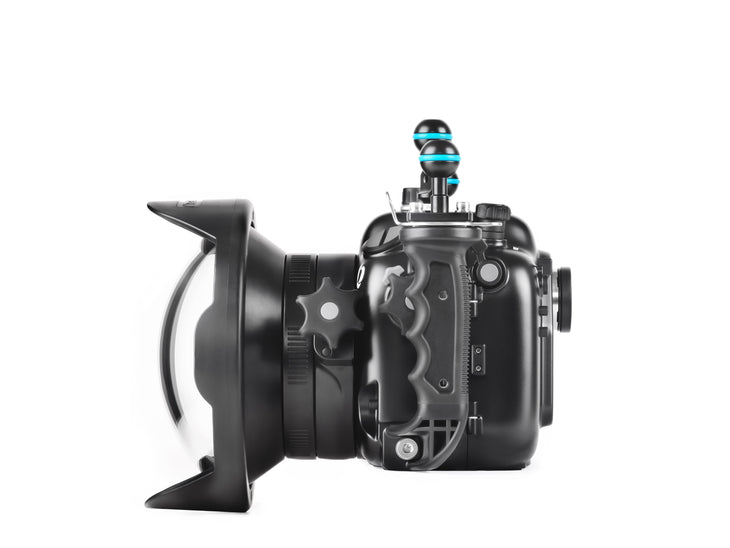

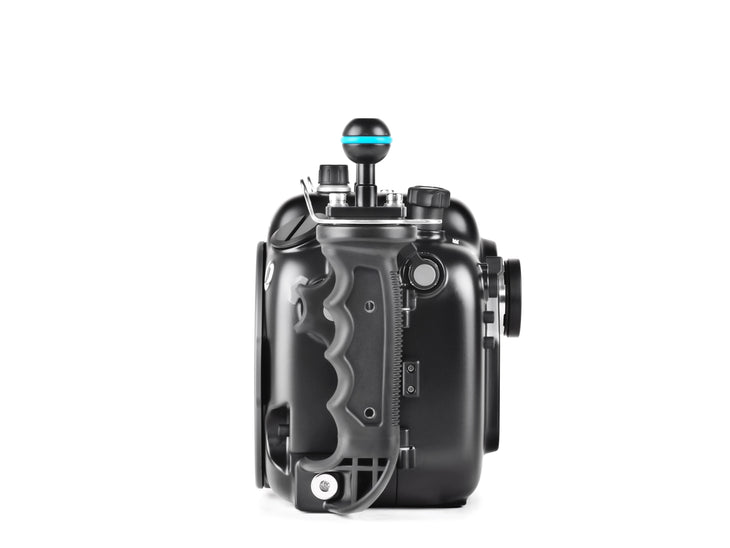

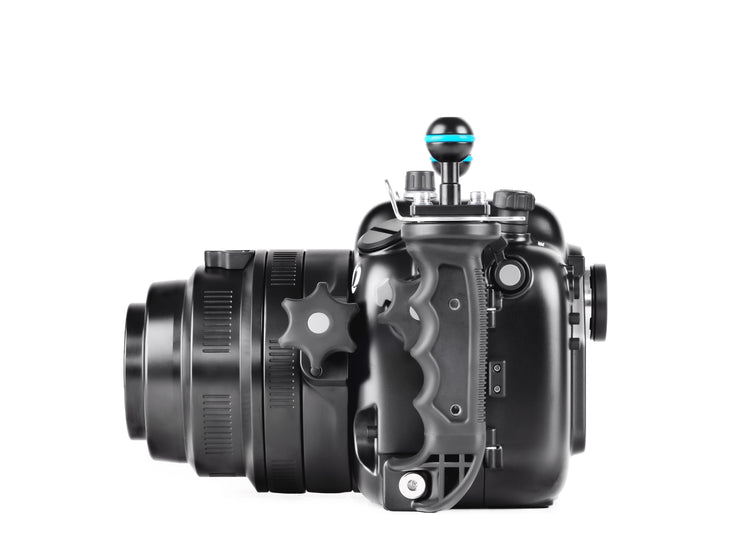

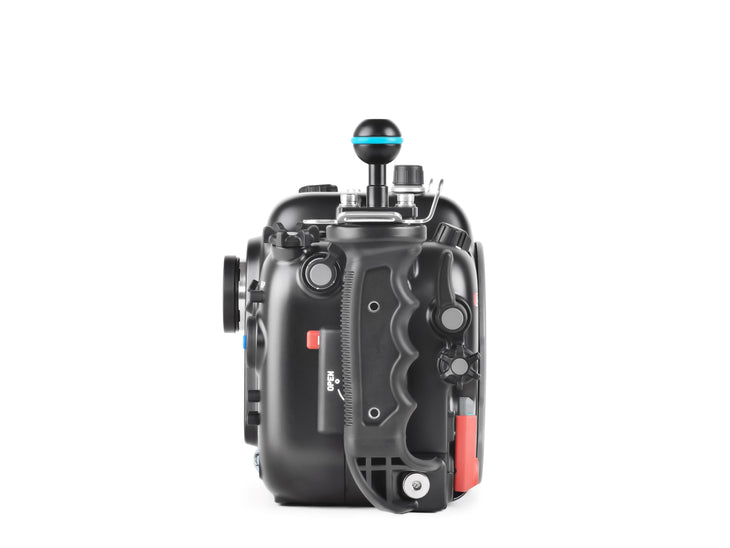

Introducing NA-Z6III
The Nikon Z6III Camera
- 24.5MP Partially-Stacked CMOS Sensor
- EXPEED 7 Image Processor
- 6K 60p N-RAW, 6K 30p ProRes RAW
- 4K 120p, Full HD 240p Slow Motion Video
- Up to 20 fps Raw, 60 fps JPEG Shooting
- Blackout-Free, 5760k-Dot EVF
- 493-Point AF, AI-Based Subject Detection
- 3.2" 4-Axis Tilting Touchscreen LCD
- CFexpress Type B & SD Memory Card Slots
- Camera-to-Cloud Direct Connectivity
Nikon F-Mount & Z-Mount Lens Support
The Nauticam NA-Z6III is designed to accomodate both Z-Mount and F-Mount lenses. With the new compact design of the NA-Z6III housing, there are newly released zoom and focus gears that will drive off the main zoom/focus knob on the housing. There is also the 22225 N120 FTZ Adapter ER 25 with Knob which will allow you to use previous generation Z-Mount zoom and focus gear along with F-Mount lenses and their corresponding gears. For complete compatibility details, you can view the NA-Z6III Port Chart.
Resources
Resources
User Manual PDF Download
What's in the box:
- NA-Z6III Housing
- N120 Port Cap
- 2x Optical Bulkhead Caps
- 2x Handles with mounting balls and 2x handle brackets
- Pre-installed Leak Detection & Moisture Alarm with CR-2032 Battery
- 90137 Spare Main Houisng O-ring, O-ring remover and Nauticam Lubricant
- Set of Allen Keys
- Manual Instruction Card
- Padded Housing Bag and Shoulder Strap
Recommended Accessories
- 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
- 25221 M10 strobe mounting ball for housing
- 25224 M10 strobe mounting ball for housing (with hole for using lanyard)
- 25228 M5 strobe mounting ball for housing
- 25625 M16 Vacuum Valve II (Pushbutton Release)
- 28130 Hand Strap for 28113
- 28123 Pair of handles - size S (10mm closer to housing)
- 32203 Nauticam 45 viewfinder (slightly vignettes)
- 32211 Nauticam Full Frame Straight Viewfinder 32 / 1:1
- 32212 Nauticam Full Frame Straight Viewfinder 40 / 0.8:1
- 32213 Nauticam Full Frame Angle Viewfinder 32 / 1:1
- 32214 Nauticam Full Frame Angle Viewfinder 40 / 0.8:1
- 87213 Reverse Angled Viewfinder for EMWL 40 / 0.8:1
- 87214 Reverse Straight Viewfinder for EMWL 40 / 0.8:1
- 87215 Reverse Angled Viewfinder for EMWL 32 / 1:1
- 87216 Reverse Straight Viewfinder for EMWL 32 / 1:1
*32212 / 32214 is preferred
Surface USB-PD Power Bank
- 26325 USB-C Bulkhead with USB-C Connector
- 26326 M24-M16 Adaptor for use with 26325
HDMI Output
Required accessories for HDMI 2.0 Cable System
- 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
- 25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-A1 to use with Ninja V housing)
Compatible Monitor Options
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja 5 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
- 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 Cable0 with Atomos AtomX SDI Module
- 17926 Nauticam NA-Ultra5 Housing for SmallHD Ultra 5 Camera Monitor
Required accessories for HDMI 1.4 Cable System
- 25033 Standard HDMI bulkhead with M16 thread
- 26326 M24-M16 Adaptor for use with 26325 *instead of existing 25081
- 25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-A1 (for connection from HDMI bulkhead to camera)
*25033 is included in 17923 monitor housing
Compatible Monitor Options
- 17923 NA-Shanobi-H Housing for Atomos Shinobi 5.2 4k HDMI Monitor with HDMI 1.4 input
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja 5 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
-
17926 Nauticam NA-Ultra5 Housing for SmallHD Ultra 5 Camera Monitor
- 25082 HDMI 1.4 Cable for Ninja V housing in 0.75m Length (for connection from Ninja V housing to HDMI bulkhead)
*25082 is Required for use with 17922/17926 monitor housing.
Required Monitor Mounting System
- 17951 Nauticam Atomos Shogun housing mounting system
- 17952 Nauticam Monitor Housing Mounting Adaptor
- 17954 Tripod plate for NA-A7S and NA-GH4
- 17960 Universal Quadra-Pod Plate for Nauticam Housings
