Nauticam Atomos Ninja TX

Atomos Ninja TX, TX Go and RAW

The three models share the same new-generation Atomos platform, but they are aimed at different users. The Ninja RAW is the entry-level model for filmmakers who want professional RAW recording. The Ninja TX GO adds cloud connectivity and wireless workflows for hybrid creators. The Ninja TX is the flagship, adding SDI, AirGlu timecode, and higher-resolution recording for cinema and broadcast productions.

The TX generation incorporates numerous exposure and color analysis tools including:

• Waveform
• RGB Parade
• Vectorscope
• False Color
• EL Zone
• Focus Peaking
• Zebra
• LUT preview

Ninja RAW

The Ninja RAW is the most affordable way into the new platform. It offers the same 1,500-nit HDR display, AtomOS 12, CFexpress recording, USB-C SSD support, EL Zone, waveform, vectorscope, and touch camera control as the higher-end models. Its primary limitation is the lack of networking features. There is no built-in Wi-Fi, so it cannot participate in camera-to-cloud workflows or wireless streaming. It is HDMI-only no SDI.

Ninja TX GO

The TX GO builds directly on the Ninja RAW by integrating Wi-Fi and networking capabilities. It supports direct uploads to Frame.io, Dropbox, and ATOMOSphere, along with NDI/HX3 streaming for remote monitoring. It remains HDMI-only and records up to 6K ProRes RAW, making it well suited to mirrorless cameras from Sony, Canon, Nikon, Panasonic, and Fujifilm.

Compared with the Ninja RAW, the TX GO adds:

• Built-in Wi-Fi
• Camera-to-cloud
• NDI streaming
• OTA firmware updates
• 20 GB of ATOMOSphere cloud storage

Ninja TX

The Ninja TX is designed for professional cinema and broadcast environments. It includes everything found in the TX GO plus:

• 12G-SDI input and output
• HDMI and SDI cross-conversion
• AirGlu wireless timecode
• Support for up to 8K ProRes RAW

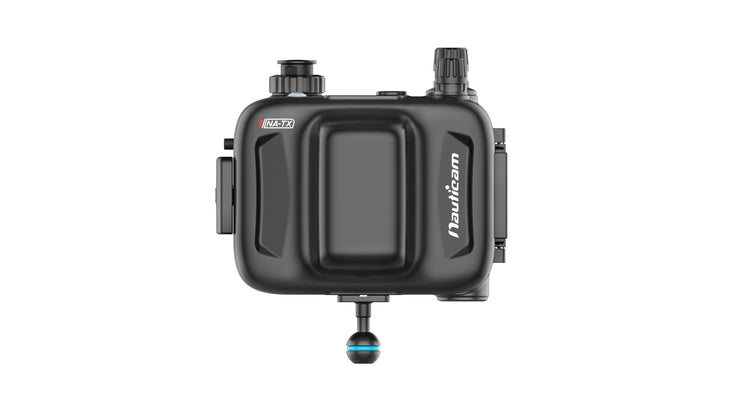

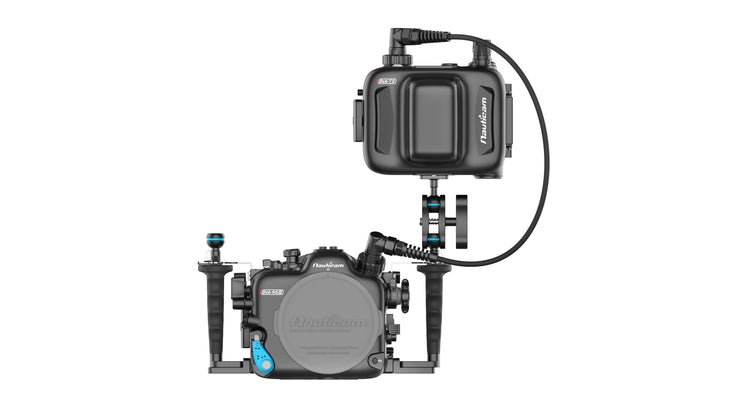

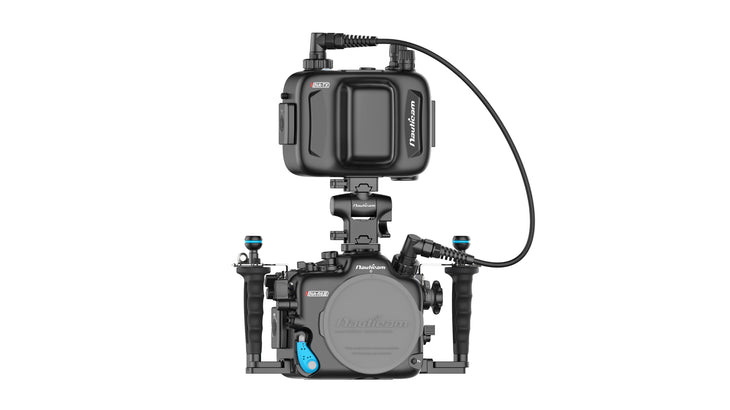

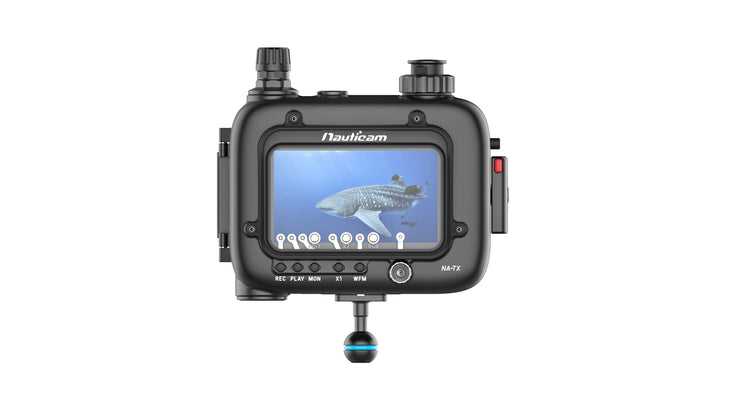

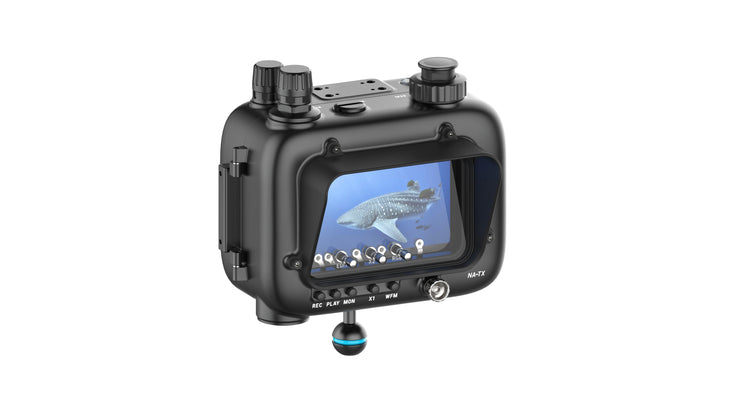

Nauticam NA-Ninja TX Housing

The Nauticam NA-Ninja TX builds on the strong foundation Nauticam has built with previous Atomos monitor/recorder housings. It can support both HDMI and SDI inputs as well as HDMI in to HDMI out,  HDMI in to SDI out (cross conversion) and SDI in to SDI out. The NA-Ninja TX supports both Sony NP-F series, and SmallRig L-Series batteries. A CR-2032 battery powers the internal vacuum check and leak detection system and with the pre installed vacuum valve, the system gives real-time feedback about the watertight integrity of the housing through an easily visible multi-color LED on the top of the housing. Access to the touchscreen controls are handled via a series of buttons and a selector knob beneath the screen of the housing.

Main Features:

• Rotary Housing Lock
• Support HDMI in & SDI out (cross conversion), SDI in & SDI out
• Compatible with Sony NP-F series battery, and SmallRig L-Series/NP-F970 USB-C Rechargeable battery, Max. size (Lx W x D): 71.6 x 38.5 x 74.6.
• Vacuum check and leak detection system
• Accessory ports on top: 2x M16, 2x M28
• Accessory ports on bottom: 1x M28
• Mounting thread holes on both top and bottom:  4x 1/4-20 for Housing Mounting System (#17951), 4x M3 for mounting ball (#17958)
