Nauticam is pleased to announce an exceptionally comprehensive vacuum system that allows the underwater photographer to confirm watertight integrity before entering the water. This system provides additional peace of mind with expensive camera equipment and should mean fewer lost dives due to minor equipment issues.
The system is comprised of two parts, a one way vacuum valve and an electronic monitoring circuit.

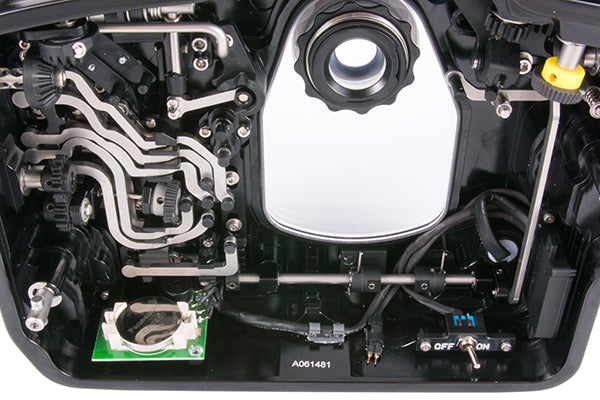

The electronic monitoring circuit is compactly integrated into the housing's leak detector, where it constantly measures the vacuum level and reports its status via a multi-color LED easily visible on the rear of the housing. This sophisticated circuit has an advanced temperature compensation capability, so changes in ambient temperature or changes in internal temperature won't cause a false positive.
Starting with NA-70D for Canon 70D, all new Nauticam DSLR and Mirrorless Interchangeable Lens Camera housing models will ship with the electronic monitoring circuit installed as standard equipment. Vacuum valves are sold as optional equipment, allowing the user to customize the housing accessory configuration as needed.
Retrofits for existing housings are available starting November 4, 2013. Contact your local Nauticam dealer for details.
The second component of this system is a one way vacuum valve, which is available in several styles to support various housing configurations. These Vacuum Valves contain an integrated vacuum release, and a redundant waterproof cap. No tools are required to open the housing after creating a vacuum, as the vacuum is released with a simple knurled nut.
The basic valve uses a hand pump to create the vacuum, but a more advanced Dual Activation vacuum valve is also available. The Dual Activation Valve accepts a BCD Low Pressure Inflator Hose quick disconnect, and uses tank pressure to create a Venturi effect that pulls the vacuum. This is recommended for housings like Nauticam's DCES for RED EPIC and SCARLET where the internal volume of the housing makes using a hand pump impractical.
"Offset" Extension Valves are used when a housing has a single accessory hole, but requires both a Vacuum Valve and electrical bulkhead to be installed in the same location. This will enable most housings to be able to utilize this valuable tool.
All vacuum valves also include a hand pump and spanner tool for installing valves.
The Bottom Line
This new system is the most advanced integrity check system available today, and the only one with integrated leak detection and temperature compensation. With it's intuitive multi-colored LED status codes, the underwater photographer can now be assured with a simple glance that the watertight integrity of the housing is secure.
M14 Vacuum Valve
M16 Vacuum Valve
M16 Dual Activation Vacuum Valve (compatible with low pressure inflator hose quick disconnect)
M14 Offset Connector with Vacuum Valve
M16 Offset Connector with Vacuum Valve
M16 Offset Connector with Dual Activation Vacuum Valve (compatible with low pressure inflator hose quick disconnect)
All valves include a hand pump and installation tool at no charge.
Estimated Shipping Date: Nov 4, 2013
