for Panasonic Lumix GH5/GH5S/GH5II Cameras with HDMI 2.0 Support

SKU # 17713V

$ 5,902.00

Panasonic hybrid camera systems have revolutionized all levels of motion imaging capture. Pairing high quality interchangeable lenses with compact camera bodies, the video camera of choice for underwater filmmakers has undergone an incredible transformation in recent years. It has become the Panasonic GH5, GH5S and GH5 II. An exceptional hybrid housing to complement an exceptional hybrid camera, the NA-GH5SV is a video-centric version of the NA-GH5 housing that supports HDMI 2.0 output via the new M28 bulkhead.

Technical Specifications

Depth Rating 100m
Weight 2.36kg
Dimensions 331mm (W) × 184mm (H) × 110mm (D)
Port Opening N85 for Olympus and Panasonic Micro Four Thirds

This item is non-returnable, non-refundable, non-cancellable, and may be subject to extended lead times as it is manufactured on demand.  We always do our best to meet trip deadlines so please advise us if you have a trip coming up!

Introducing NA-GH5SV

The Panasonic GH5, GH5 II and GH5S

The Panasonic GH5 is a new camera body, positioned above the successful GH4, and improving it in every way. At the core is a 20 megapixel sensor with completely revamped video functionality. When shooting motion, GH5 reads the entire 5K sensor, then resamples in camera to create each individual 4K frame. This results in increased sharpness with no change in lens angle of coverage! Panasonic didn’t stop there, unlocking UHD video capture at up to 29.97 fps with 4:2:2 10-bit chroma sub-sampling. Simply put, this means the GH5 can capture twice the color information with 64x the precision of a 4:2:0 8-bit system. The GH5S, featuring the same body as the GH5 is even more video focused than its sibling. The GH5S features an anamorphic 10.2MP sensor featuring Dual Native ISO technology borrowed from the high end VariCam that can record DCI 4K internally at up to 30fps with 10-bit 4:2:2 color and HDR Hybrid Log Gamma support.  The GH5 II offers improved video and autofocus performance over the GH5 with the ability to internally record 4K 10-bit 4:2:0 video at 60p with simultaneous output over HDMI.

Panasonic GH5 and GH5 II Key Features

  • 20MP Four Thirds sensor (no OLPF)
  • 5-axis in-body image stabilization system with 'Dual IS 2' support
  • All 4K footage taken using full width of sensor (oversampled from 5.1K footage)
  • Internal 4K/30p 10-bit 4:2:2 video capture
  • 4K/59.94p and 50p shooting with 10-bit 4:2:2 output or 8-bit, 4:2:0 internal recording for GH5
  • 4K/60p with 10-bit 4:2:0 internal recording with simultaneous output over HDMI for GH5 II

Panasonic GH5S Key Features

  • 10MP Anamorphic sensor
  • Dual Native ISO of 400 and 2,500
  • DCI 4K 10-bit 4:2:2 at 30fps internal recording with simultaneous 10-bit 4:2:2 feed through HDMI out
  • 1.8x crop factor vs 2.0x crop factor of GH5

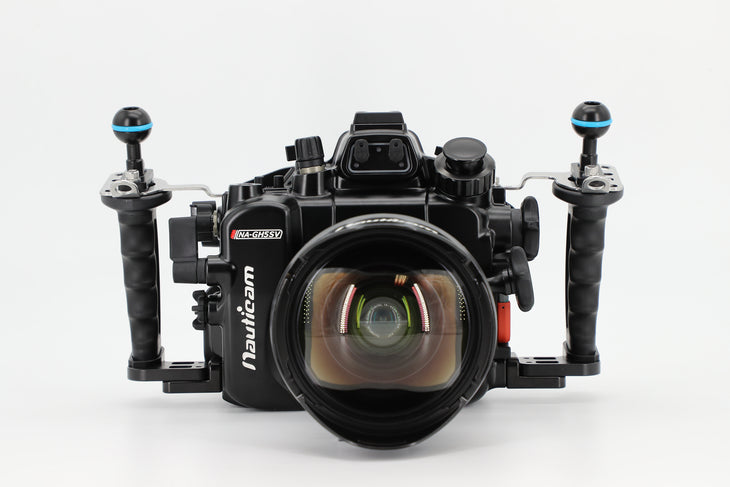

The Nauticam NA-GH5SV Underwater Housing

The NA-GH5SV housing is small, but not at the expense of functionality or ergonomics. Integrated handles provide a sturdy and comfortable base to operate the system from. A sculpted shutter release lever, thumb lever for AE-L / AF-L, and well placed control dials provide the same operational feel as any Nauticam DSLR housing. Control buttons are placed within easy reach of the handles, with sufficient spacing to allow easy operation, even by feel. The NA-GH5SV is a professional grade underwater housing, built with cutting edge manufacturing technology, supporting the pro-level GH5/GH5S/GH5II camera bodies to its full potential.

The GH5/GH5II/GH5S feature four custom White Balance Presets allowing the video shooter to store settings for various depths as well as natural/artificial light scenes and switch between them quickly on a dive. Access to these presets is a breeze with the NA-GH5SV mission control layout. A second thumb lever on the right side of the housing, easily accessed from the handle, brings up the white balance presets. Simply scroll to the desired preset and film away.

Premium Professional Optics

The variety of optics solutions for the NA-GH5SV are staggering. Whether you're choosing a MFT open-source standard lens such as the Panasonic 8mm Fisheye or the ultra-fast Olympus 60mm macro lens there is an N85 port system port for you.

Looking for zoom-through capability and both macro and wide on the same dive? The WWL-1 and CMC wet-mate system allows for unmatched corner sharpness for your wide angle and ridiculous reproduction ratios for your macro. The bayonet mount system allows for switching underwater.

TTL and Manual Optical Strobe Triggering

Add the optional Panasonic DMW-FL70 Flash inside the housing for reliable, accurate triggering of optical TTL compatible strobes. The DMW-FL70 is not compatible with the GH5II.  Please use the 26309 Mini Flash Trigger for the GH5II.  Rapid fire manual triggering is also available with the Nauticam Mini Flash Trigger .

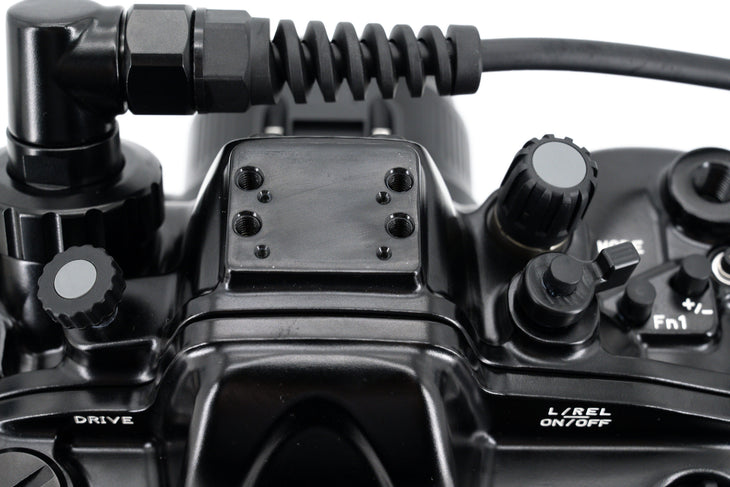

HDMI 2.0 Output

The NA-GH5SV housing is a version of the NA-GH5 housing that features the M28 bulkhead connection that supports HDMI 2.0 connections for use with the NA-NinjaV housing for the Atomos Ninja V recorder. This allows for 4K 60p 10-bit 4:2:2 output and recording. The standard NA-GH5 housing supports up to HDMI 1.4.

Matched with the integrated tripod mounting ball attachment points the NA-GH5SV can be turned into a steady macro or time-lapse platform.


Support & Downloads

User Manual Download

NA-GH5V User Manual (PDF)

What's In The Box?

  • NA-GH5SV Housing
  • Spare Main O-ring
  • O-ring Remover
  • CR-2450 Battery (for Moisture Alarm)
  • Lubricant
  • Set of Allen Keys

Recommended Accessories:

  • M14 Vacuum Valve II (PN 25624)
  • Nauticam 180º Straight Viewfinder for MIL Housings (PN 32204)
  • Nauticam 45º Viewfinder for MIL Housings (PN 32205)
  • O1250-Z Zoom Gear for Olympus 12-50mm EZ to use with GH5/EM1X (for NA-GH5/EM1X) PN 36059
  • Macro Port and Zoom Gear Set for Olympus 12-50mm EZ to use with GH5/EM1X (for NA-GH5/EM1X) PN 36060
  • P1442X-PZ Zoom Gear (compatible with NA-GH5) for Panasonic Lumix G X Vario PZ 14-42mm F3.5-5.6 ASPH. POWER O.I.S. (PN 36061)

 HDMI 2.0 Accessories

For use with either:

Atomos Ninja V Housing for Atomos Ninja V and Ninja V+ 5" Recorder/Monitor/Player (HDMI 2.0 cable Sold Separately) (PN 17922)


Nauticam Atomos Flame Housing (with HDMI 2.0 input) for Atomos Ninja Flame/Shogun Flame/Shogun Inferno 7'' 10-bit 4K/HD SDI / HDMI Recorder/Monitor/Player housing) PN 17909


M28A2R210-M28A1R170 HDMI 2.0 Cable (for NA- GH5V to use with Ninja V) PN 25079


HDMI 2.0 Output

NA-GH5V housing is a version of the NA-GH5 housing that features the M28 bulkhead connection that supports HDMI 2.0 connections for use with the NA-NinjaV housing for the Atomos Ninja V recorder.

Patented Port Locking System

Unveiled on the very first Nauticam DSLR housing in 2009, this locking lever has become a signature of the Nauticam brand.  No twisting or threading action is required to mount a port, and it locks securely in place with this lever.  Nauticam also offers locking port extensions, meaning a dome will never twist, even when used with a long extension ring.

Housing Locking Latches

The industry's easiest to use housing closure system, requiring very little hand strength to operate, secures the housing back in place. The latches are safely locked to prevent accidental opening, but are easy to open when needed for a quick battery or memory card change.

Integrated Tripod Mounts

The NA-GH5 has integrated mounting points on the bottom for industry standard 1" ball-mounts that can be used to attach tripod legs.

Mission Control

Nauticam engineers focus on getting the essential shooting controls to where they are most accessible making the handles of the NA-GH5 Mission Control for both still and video underwater imaging including the all-important custom white balance!
