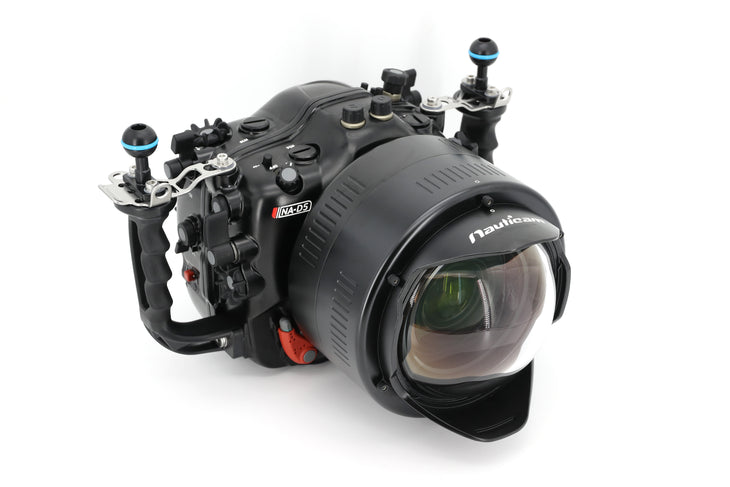

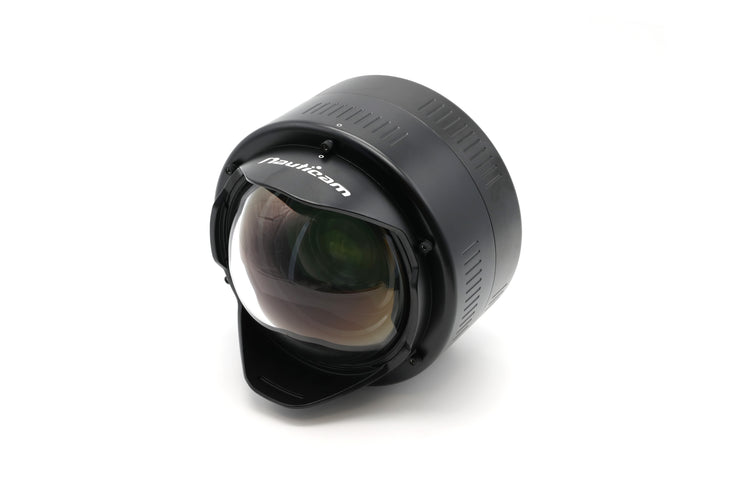

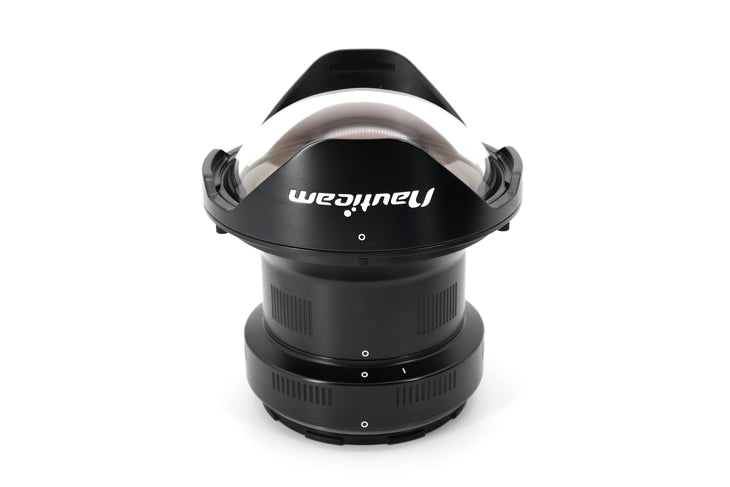

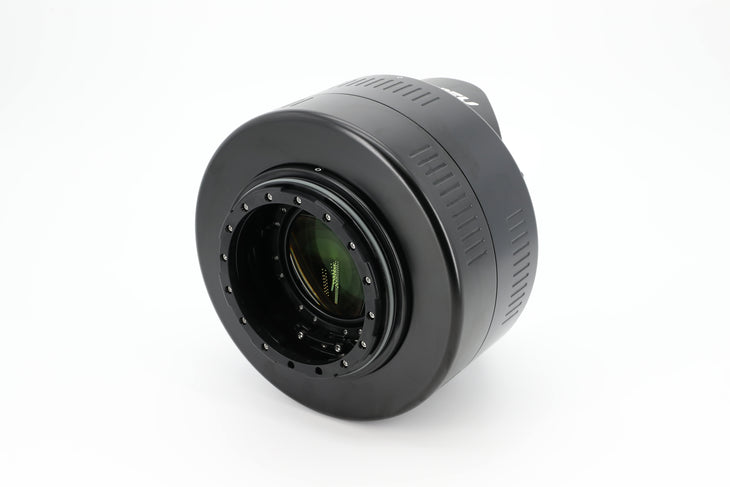

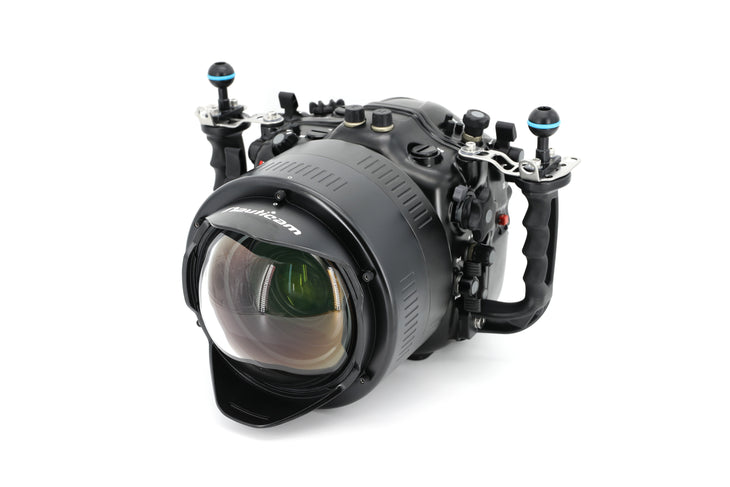

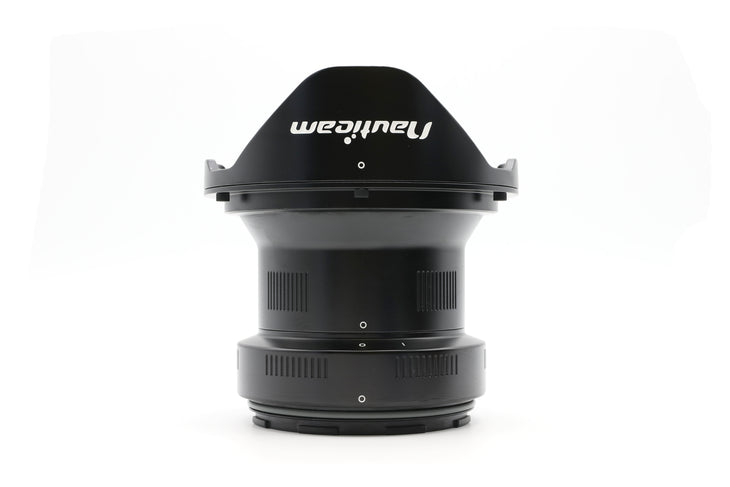

N100 0.36x Wide Angle Conversion Port

for Full Frame 28mm lens, incl. buoyancy collar and N120 to N100 port adaptor

SKU # 85201

$ 3,950.00

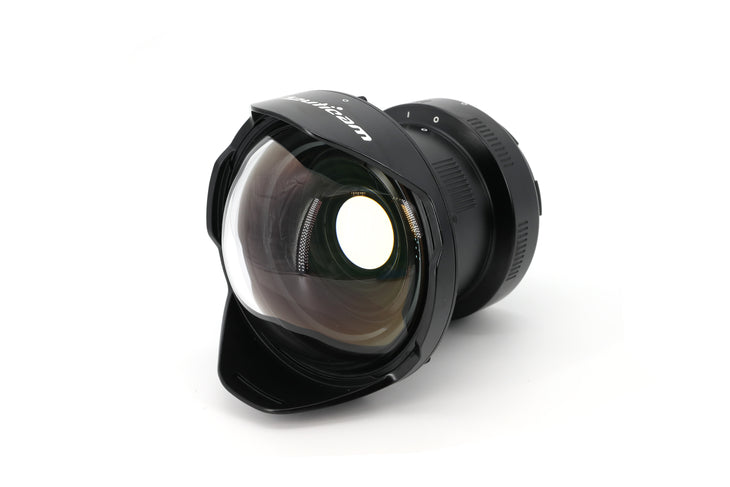

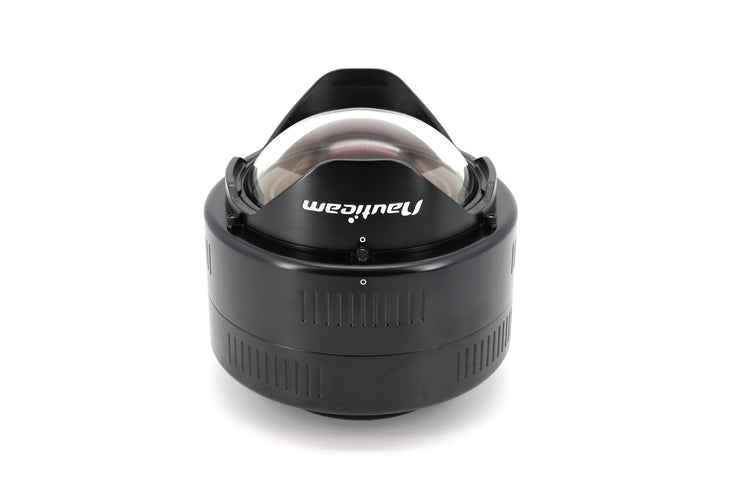

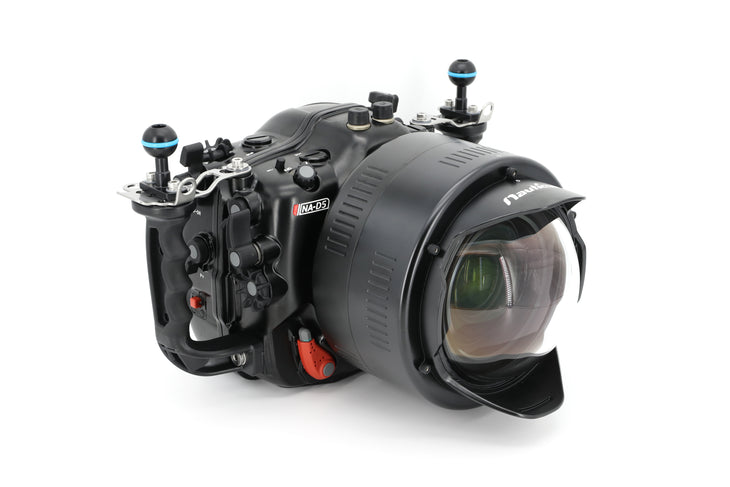

The WACP is a 0.36x Wide Angle Conversion Port.  Unlike traditional ports or wet-mate corrective wide-angle optics, the WACP is a "dry" corrective optic that modifies a 28mm equivalent lens to an extremely sharp 130º.


Technical Specifications

 Depth Rating 100m
Weight (in air) 3.90 kg
Weight (in water) 0.32kg
Body Construction Hard-anodized Aluminum Alloy
Lens Construction 6 Elements in 5 Groups
Lens Coating Anti-reflective on both sides


Images Taken With N100 0.36x Wide Angle Conversion Port


Introducing N100 0.36x Wide Angle Conversion Port

Focus

The WACP can focus from its front element to infinity in-water allowing for extremely close-focus wide angle shooting.  When used with certain zoom lenses, the WACP can provide a variety of field-of-view options.

Buoyancy Collar

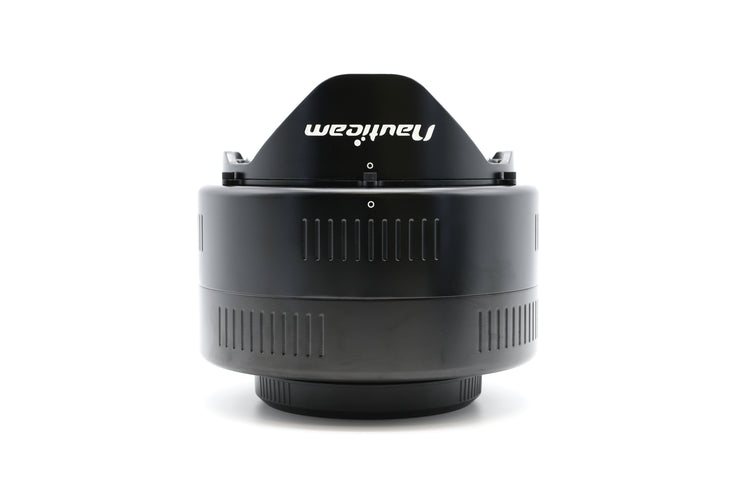

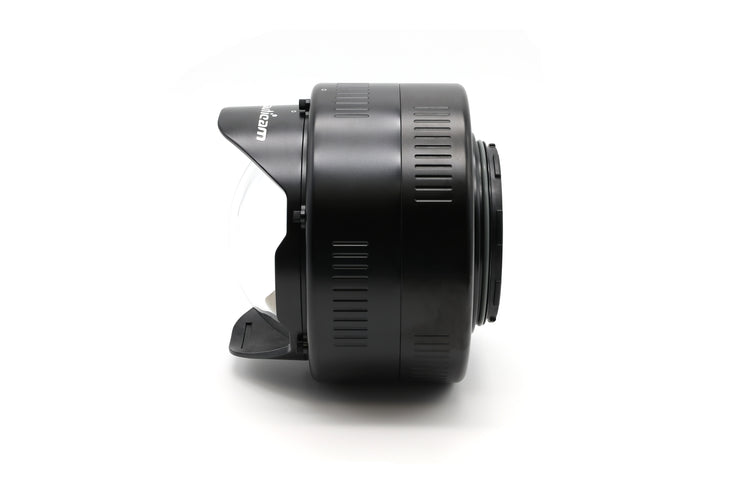

An aluminum float collar is standard and brings the in-water buoyancy 0.32kg negative.

Compatible Lenses

The WACP is designed to function at the full-frame equivalent focal length of 28mm.  A wide variety of lenses are supported, both primes and zooms for Nikon, Canon and Sony as well as Super35 Cinema Systems.  Please check the PORT CHART for supported lenses and suggested configurations as some lenses will require extension rings or adapters.

NOTE: for the Sigma 18-35mm F1.8 DC HSM | A lens, a dedicated optimized version of the WACP is available (85202)

    Included in the Box

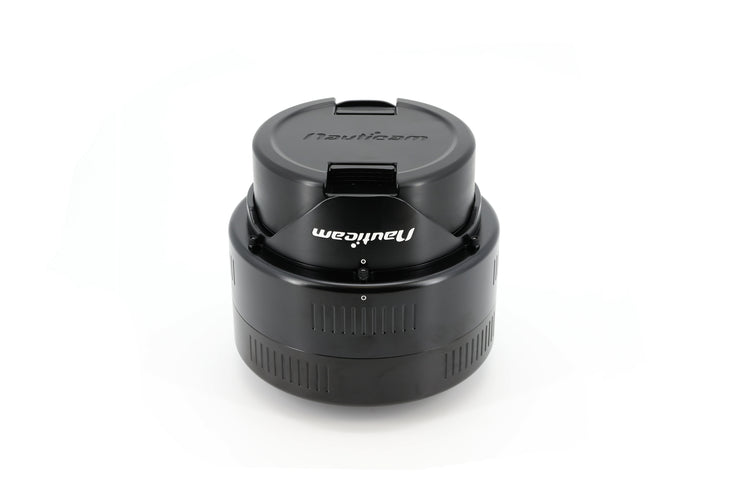

    • Hard Lens Cap and rear port cap (N120)

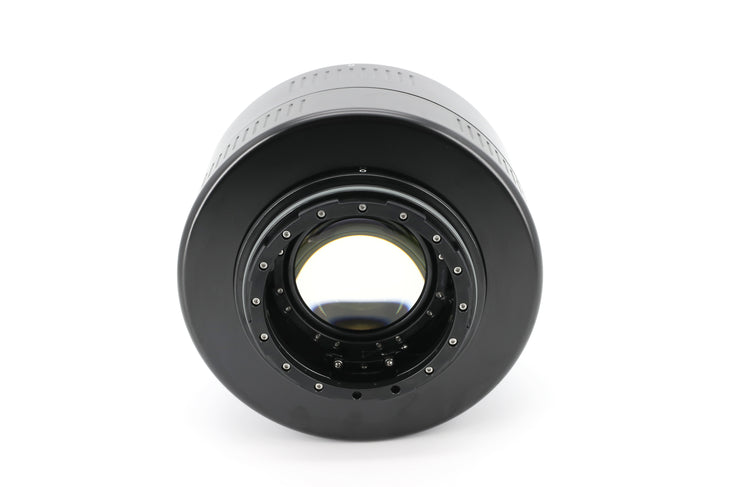

    • N120 to N100 35mm port adaptor
    • Carrying Bag
    • Aluminium Float Collar (85221), for 85201
